Mounting Bracket Detail

ANTENNAS >>2400 MHz ANTENNAS
EXCELLENT SMALL 2.4 GHz ANTENNA
AN-24S
Model: AN-24S
Price: call

This little antenna is excellent for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 3 dBi.
Dimensions : 3.5 " X 0.4 " X 0.2 ".

MORE INFO
TEST RECORD
CONTACT

2.4GHz MINI RUBBER DUCKY WIRELESS ANTENNA -MC CONNECTOR
AL-24
Model: RL-24MC
Price: call

This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using a right angle MC type connector. Impedance 50 ohms, gain 1 dBi.
Dimensions: 2.16" X 0.29".
Connector Detail Picture
AL-24

MORE INFO
CONTACT
2.4GHz MINI RUBBER DUCKY WIRELESS ANTENNA - MMCX CONNECTOR
AL-24
Model: RL-24

This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using a right angle MMCX type connector. Impedance 50 ohms, gain 1 dBi.
Dimensions: 2.0 " X 0.12".
Connector Detail Picture
AL-24

MORE INFO
CONTACT
EXCELLENT SMALL 2.4 GHz ANTENNA
ALS-24
Model: ALS-24
Price: call

This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 1.25 " X 0.25 ".

MORE INFO
TEST RECORD
CONTACT



EXCELLENT SMALL 2.4 GHz ANTENNA
AL-24
Model: ALT-24
Price: call

This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 1.0 " X 0.25 ".

MORE INFO
TEST RECORD
CONTACT



EXCELLENT SMALL 2.4 GHz ANTENNA
AL-24
Model: AL-24
Price: call

This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 2.0 " X 0.25 ".

MORE INFO
TEST RECORD
CONTACT



EXCELLENT SMALL 2.4 GHz ANTENNA
AL-24R
Model: AL-24R
Price: call

This smallest antenna is perfect for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 0 dBi.
Dimensions: 2.0 " X 0.25 ".

MORE INFO
TEST RECORD
CONTACT




EXCELLENT SMALL 2.4 GHz ANTENNA
AX-24R
Model: AX-24R
Price: call

This little antenna is excellent for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector. Impedance 50 ohms, gain 3.5 dBi.
Dimensions: 7.5 " X 1.2 " X 0.2 ".

MORE INFO
TEST RECORD
CONTACT





EXCELLENT SMALL OMNI DIRECTIONAL 2.4 GHz ANTENNA
MT-58L
Model: MT-24L
Price: call

This very compact mobile-mount omni antenna provides broad coverage and 5 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired.

Frequency: 2400 MHz .
Gain: 5 dBi
Weight: < 0.2 lbs. with base
Length: 5 " including base

MORE INFO
TEST RECORD
CONTACT



SPECIAL MOBILE OMNI DIRECTIONAL 2.4 GHz ANTENNA
MT-58L
Model: MT-24P
Price: call

This very compact mobile-mount omni antenna provides broad coverage and 3 dBi gain. It is ideally suited for PCS applications where omni-directional coverage and low visibility are desired. It comes with 6 ft special coax cable with an SMA male connector

Frequency: 2400-2500 MHz .
Gain: 3 dBi
Weight: < 0.25 lbs.
Length: 2.7 "

MORE INFO
TEST RECORD
CONTACT



OMNI DIRECTIONAL MOBILE 2.4 GHz ANTENNA
MT-58
Model: MT-24
Price: call

This omni directional magnet mount antenna is excellent for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector.

Gain: 5.8 dB
Dimensions:10 " X 3.0 " magnet base .
Weight: 0.5 LB

MORE INFO
TEST RECORD
CONTACT





OMNI DIRECTIONAL 2.4 GHz ANTENNA FOR SPECIAL APPLICATIONS
AD-24S
Model: AD-24S
Price: call

AD-24S antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector.
Dimensions: 6.75" X 0.8 ".
Impedance 50 ohms
Gain 5 dB.

MORE INFO AD-24S
TEST RECORD
CONTACT
  The lightest transmitting antenna on the market for flying system, only 30 gram



OMNI DIRECTIONAL 2.4 GHz ANTENNA
AD-24SH
Model: AD-24SH
Price: call

AD-24SH antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 2.4 GHz band. The antenna is using an N type connector.
Dimensions are:8.5" X 1.0".
Impedance 50 ohms
Gain 4 dB.

MORE INFO
TEST RECORD
CONTACT



OMNI DIRECTIONAL 2.4 GHz ANTENNA
AD-24SH
Model: AD-24SHS
Price: call

AD-24SHS antenna is highly recommended for Police robots transmitters. It is omni directional and works for any transmitter or receiver in 2.4 GHz band. The antenna is using an SMA type connector.
Dimensions are:35cm X 2.54cm.
Impedance 50 ohms
Gain 6.5 dB.

MORE INFO
TEST RECORD
CONTACT


ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: $25.00 USD

HIGH GAIN OMNI-DIRECTIONAL ANTENNA 2200-2300 MHz
PN-24S
Model: AD-2400HP
special order, call for pricing

A collinear Omni-Directional antenna that utilizes a center fed Collinear Dipole array that offers superior performance over the traditional bottom fed collinear designs.
Dimensions: 40.5 " X 1.69"
Impedance 50 ohms
Gain 15 dB.

MORE INFO
CONTACT

ADH-4776 AD-24SH Optional Mounting Bracket
Model: BRCK02
Price: $25.00 USD

HIGH GAIN 2.4 GHz PANEL ANTENNA
PN-24S
Model: PN-24S
Price: Call

Panel antenna PN-24 S has 14 dB gain in 2.400 MHz - 2.500 MHz range. Antenna has an SMA connector and comes with a 50 ohm cable 1 ft long.
Dimensions: 8.5 " X 8.5 " X 1.0".
Impedance 50 ohms
Gain 14 dB.

MORE INFO
TEST RECORD
CONTACT



HIGH GAIN 2.4 GHz PANEL ANTENNA
PN-24S
Model: PF-24
Price: call

Panel antenna PF-24 has 12 dB gain in 2.300 MHz - 2.500 MHz range. Antenna has an SMA connector and comes with a 50 ohm cable 1 ft long. Weight: 200g.
Dimensions: 4.0 " X 4.0 " X 4.0".
Impedance 50 ohms
Gain 12 dB.

MORE INFO
TEST RECORD
CONTACT


1900 MHz - 2500 MHz SPECIAL ANTENNA
LOG4/GR
Model: LOG1925
Price: call

This special antenna antenna is excellent for any transmitter or receiver in 1900-2500 MHz band. The antenna LOG1925 is using an N- type connector. Maxium transmitting power is 50W. Impedance 50 ohms, gain 9.5 dB in 1900 MHz- 2500 MHz band.
Dimensions: 11 " X 8.3" X 2.6" .

MORE INFO
TEST RECORD
CONTACT



HIGH GAIN 2.4 GHz BACKFIRE ANTENNA
F-250
Model: F-250
Price: call

High gain Backfire antenna F-250 S has 15 dB gain in 2.400 MHz - 2.500 MHz range. This antenna has diameter 10". Antenna has an integral N female connector.
Dimensions: 10.0 " X 5.0 "

MORE INFO
TEST RECORD
CONTACT







HIGH GAIN 2.4 GHz YAGI RADOME ANTENNA
LOG1/GR
Model: LOG1/GR
Price: call

High gain Yagi antenna LOG1/GR has 15 dB gain in 2.400 MHz - 2.500 MHz range. Antenna has an N connector.
Dimensions: 18.0 " X 3.0 "

MORE INFO
TEST RECORD
CONTACT


2.4 GHz ANTENNA 15 dB GAIN
PG-24L
Model: PG-24L
Price: call

High gain antenna PG-24L has 15 dB gain in 2.400 MHz - 2.500 MHz range. This antenna comes with our AMP-18/24M low-noise amplifier for the longest range. Complete system has 33 dB gain in 2.4 Ghz range. Antenna has N connector and comes with a military grade 50 ohm cable 1 ft long.
Dimensions: 12.0 " X 16.0 ".
Amplifier- 18/24M is included with this unit.

MORE INFO
TEST RECORD
CONTACT

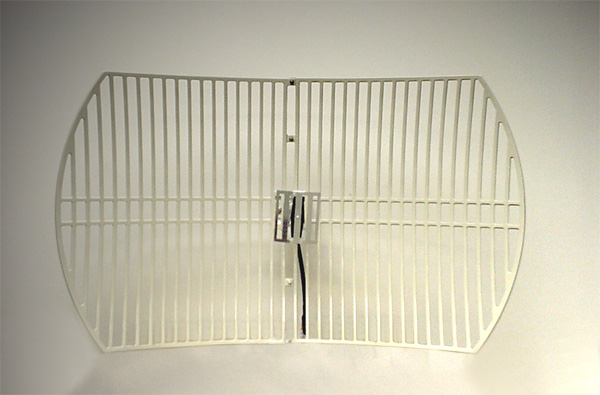

2.4 GHz ANTENNA 57 dB GAIN
PX-24L
Model: PX-24L
Price: call

High gain antenna PX-24L has 57 dB gain in 2.300 MHz - 2.500 MHz range. This antenna comes with our AMP-18/24M low-noise amplifier for the longest range. Complete system has 57 dB gain in 2.4 Ghz range. Antenna has N connector and comes with a military grade 50 ohm cable 1 ft long.
Dimensions: 40 " X 24 "
Amplifier LNAMP-2224 is included with this unit.

MORE INFO
TEST RECORD
CONTACT

Note: This antenna in combination with our amplifer LNAMP-2224 will give you gain over 57 dB. With this antenna system you can pick- up the video transmitter signal from 120.000 ft from the AIR (rocket model with our SDX-22 video transmitter and receiver VRX series. Please refer to this link for more informations.

2.4 GHz ANTENNA 27 dB GAIN
PH-24LC
Model: PH-24LC
Price: call

Special parabolic antenna provides 27 dBi (60 dBi with special pre-amplifier) gain with a 8.0° beam-width for highly directional long range applications. Additional applications include wireless network, point to multi-point and video surveillance in the 2.4 GHz ISM band. External interference of this antenna is minimized due to the excellent front to back ratio. This antenna comes with a 18" coax lead terminated with an N female type connector.
Dimensions: 920 mm diameter
Amplifier LNAMP-2224 is included with this unit.

MORE INFO
TEST RECORD
CONTACT

Note: This antenna in combination with our amplifer LNAMP-2224 will give you gain over 60 dB. With this antenna system you can pick- up the video transmitter signal from 120.000 ft from the AIR (rocket model with our SDX-22 video transmitter and receiver VRX series. Please refer to this link for more informations.

TWO WAY ACTIVE ANTENNA SPLITTER 2.4 GHz
AN-24S
Model: CX-500/2
Price: Call

TWO-WAY antenna active splitter, Impedance 50 ohms, gain 8 dBi.
Dimensions : 5.9 " X 3.5 " X 1.6 ".

MORE INFO
TEST RECORD
CONTACT
