PROFESSIONAL TV BROADCAST APPLICATION NOTES

NEW

TVX-225/5

Model: TVBT-AVX-5/UHF
Price: CALL

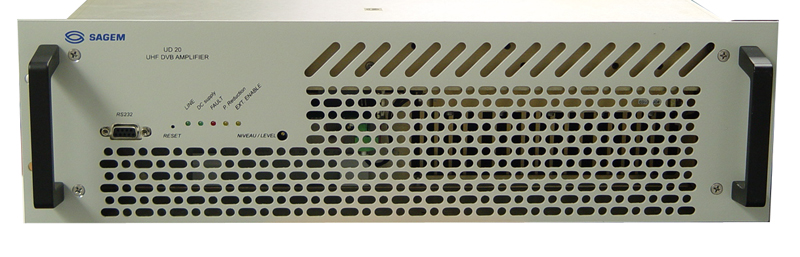

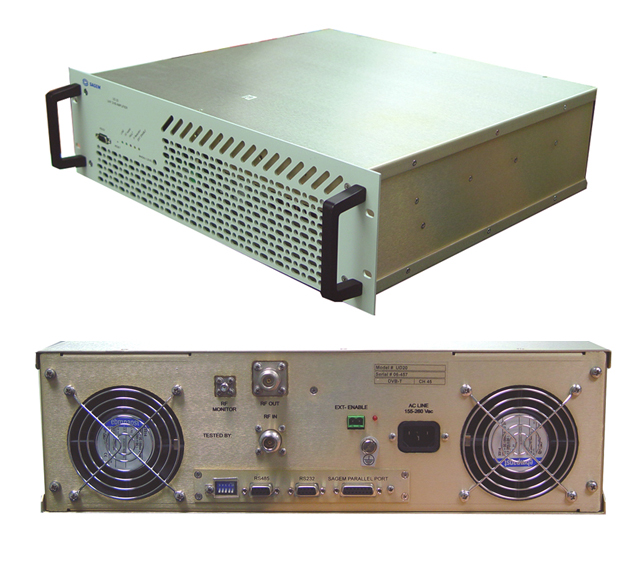

UHF DIGITAL TV AMPLIFIER UD-20

TVX-225/5

Model: UD-20
Price: call

OMNI-DIRECTIONAL ANTENNA AD-4786
FOR ALL UHF CHANNELS

TVX-225/5

Model: AD-4786
Price: call

WORLD'S FIRST
PORTABLE TV
TRANSMITTER FOR ALL UHF CHANNELS

TVX-225/5

Model: TVX-40 MIL
Price: Call

DIGITAL BROADCAST TV TRANSMITTERS

SOLID STATE, IV/V BAND, 470-860 MHz VIDEO TRANSMITTER ANALOG WITH AMPLIFIER 300W POWER

AVX-50/UHF

ZD-500W

VRT-5

Model: AD-UHF-300
Price: call

UHF Amplifier
UHF Amplifier

This TV audio-video transmitter is an excellent broadcast solution for TV stations, monitoring or experiments. It is fully synthesized and broadband for UHF channels 14- 69. Power output is 300W / 50 ohms. Power supply is 115W. PAL system is available on request. A special four channel video mixer is included with this unit.


SOLID STATE, IV/V BAND, 470-860 MHz
DBTV

Model: DBTUHF-5D
Price: call

Output power 5 Wrms. Includes "High performances" DVX-16 digital modulator and the "digital shape" output filter.
It is fully compatible with the international DTV standards (DVB-T, ATSC, 8VSB, etc....) and suitable for SFN (Single Frequency Network) and MFN (Multi Frequency Network) applications. It has output power range of 2 Wrms and is fully broadband in the whole UHF band.


SOLID STATE, IV/V BAND, 470-860 MHz
DBTV

Model: DBTUHF-50D
Price: call

Output power 50 Wrms. Includes "High performances" DVX-16 digital modulator and the "digital shape" output filter.
It is fully compatible with the international DTV standards (DVB-T, ATSC, 8VSB etc....) and suitable for SFN (Single Frequency Network) and MFN (Multi Frequency Network) applications. It has output power range of 2 Wrms and is fully broadband in the whole UHF band.


DIGITAL AMPLIFIER FOR dVB-T AND 8-VSB UHF TV TRANSMITTERS

AVTV-69

Model: AXD-69
Price: call

This amplifier is great solution for small Digital TV Stations in UHF band. Covering 470-868 MHz it is a perfect amplifier for a low power digital exciters. It needs 0 dBm driving power and it gives a 2 W output power in Digital mode.

MORE INFO TV BROADCAST APPLICATION NOTES
CONTACT

PROFESSIONAL LOW COST TV BROADCAST SOLUTIONS

(export only)

PLL TV TRANSMITTER FOR ALL UHF TV CHANNELS FROM CH 14 - CH 69 NTSC
AVTV-69

Model: AVTV-69
Price: Call

This TV audio-video transmitter is an excellent broadcast solution for small TV stations, monitoring or experiments. It is fully synthesized and broadband for UHF channels 14- 69. Power output is 1000 mW / 50 ohms. Video level is adjustable. It has built-in power supply 115V.

MORE INFO TV BROADCAST APPLICATION NOTES
CONTACT

PROFESSIONAL TV UHF LINEAR AMPLIFIERS
5 W UHF DIGITAL LINEAR TV AMPLIFER
TVBT-AVX-5/UHF

Model: TVBT-AVX-5/UHF
Price: call

Model TVBT-AVX-5/UHF is a professional TV linear amplifier in A class with 2 W RF output power and only 0.1-0.5 mW input power. It is recommended as a driving amplifier for high power stages or small DIGITAL TV stations.It is a great amplifier for DVB-T small exciters with low power output. It contains two separate amplification sections including the preamplifier module.This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO

2 W UHF DIGITAL LINEAR TV AMPLIFER
AVX-2/UHF

Model: AVX-2/UHF
Price: call

Model AVX-2/UHF is a professional TV linear amplifier in A class with 2 W RF output power and only 20 mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO

5 W UHF DIGITAL LINEAR TV AMPLIFER 470-860 MHz
AVX-5/UHF

Model: AVX-5/UHF
Price: call

Model AVX-5/UHF is a professional TV linear amplifier in A class with 5 W RF output power and 1W input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier is perfect for audio amplifications as well. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO

20 W UHF DIGITAL LINEAR TV AMPLIFER 470-560 MHz
AVX-5/UHF

Model: AVX-20/UHF
Price: call

Model AVX-20/UHF is a professional TV linear amplifier in A class with 20 W RF output power and only 25mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier is perfect for audio amplifications as well. This linear amplifier works from 470 MHz-560 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO
TEST RECORD

35 W UHF DIGITAL LINEAR TV AMPLIFER 470-860 MHz
AVX-35/UHF

Model: AVX-35/UHF
Price: call

Model AVX-35/UHF is a new professional TV linear amplifier in A class with 35 W RF output power and only 4W input power. This amplifier is using latest technology with built-in switching power supply. It is light (weights only 5 lb) unit. This amplifier is recommended as a driver for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO

50 W UHF LINEAR TV AMPLIFER 470-860 MHz
AVX-50/UHF

Model: AVX-50/UHF
Price: call

Model AVX-50/UHF is a new professional TV linear amplifier in A class with 50 W RF output power and only 4W input power. This amplifier is using latest technology with built-in switching power supply. It is light (weights only 10 lb) unit. This amplifier is recommended as a driver for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST RF-LLINKS USING THE BEST NXP'S RF POWER TRANSISTORS FOR BROADCAST, ISM & DEFENSE, AEROSPACE APPLICATIONS
MORE INFO

100 W UHF LINEAR TV AMPLIFER 470-860 MHz
AVX-50/UHF

Model: AVX-100/UHF
Price: call

Model AVX-100/UHF is a new professional TV linear amplifier in A class with 100 W RF output power and only 4W input power. This amplifier is using latest technology with built-in switching power supply. It is light (weights only 14 lb) unit. This amplifier is recommended as a driver for high power stages or small TV stations. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST RF-LLINKS USING THE BEST NXP'S RF POWER TRANSISTORS FOR BROADCAST, ISM & DEFENSE, AEROSPACE APPLICATIONS
MORE INFO

PROFESSIONAL TV VHF LINEAR AMPLIFIERS
20 W VHF LINEAR TV AMPLIFER 175-225 MHz
AVX-5/UHF

Model: AVX-20/VHF
Price: call

Model AVX-20/VHF is a professional TV linear amplifier in A class with 25 W RF output power and 3 mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 175 MHz-225 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO

60 W VHF LINEAR TV AMPLIFER 175-225 MHz
AVX-5/UHF

Model: AVX-60/VHF
Price: call

Model AVX-60/VHF is a professional TV linear amplifier in A class with 60 W RF output power and 3W input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 175 MHz-225 MHz and it is perfect for Analog or Digital TV broadcast applications.

TV CHANNELS LIST
MORE INFO

50 W UHF LINEAR TV AMPLIFIER FOR PUBLIC SAFETY BAND, OUTDOOR AMPLIFIER
AMP-50PSB

Model: AMP-50PSB
Price: call

Model AMP-50PSB is a professional TV linear amplifier in AB class with 50 W RF output power and 50 mW input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 760-870 MHz and it is perfect for Analog or Digital TV broadcast applications. Gain is 26 dB. Fully mobile this amplifier has been built in an outdoor, weatherproof box. Output connector is N female type. 12 VDC supply, 8 A

TV CHANNELS LIST
MORE INFO

2x 50 W UHF LINEAR TV AMPLIFIER FOR PUBLIC SAFETY BAND, OUTDOOR AMPLIFIER
AMP-100PSB

Model: AMP-100PSB
Price: call

Model AMP-100PSB is a professional TV linear amplifier in AB class with 2 X 50 W RF output power and 50 mW input power for each channel. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 760-870 MHz and it is perfect for Analog or Digital TV broadcast applications. Gain is 26 dB. Fully mobile this amplifier has been built in an outdoor, weatherproof box. Output connectors are N female type. This amplifier has two separate inputs and 2 separate outputs, each channel has 50 W of power / 50 ohms. 12 VDC supply 16 A

TV CHANNELS LIST
MORE INFO

150 W UHF LINEAR TV AMPLIFIER FOR UHF, OUTDOOR AMPLIFIER
AMP-150PSB

Model: AMP-150PSB
Price: call

Model AMP-150PSB is a professional TV linear amplifier in AB class with 150 W RF output power and 2-4 W of input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 470-860 MHz and it is perfect for Analog or Digital TV broadcast applications. Gain is 16 dB. Fully mobile this amplifier has been built in an outdoor, weatherproof box. Output connector is N female type. 26-28 VDC supply, 16 A

TV CHANNELS LIST
MORE INFO

UHF DIGITAL 8VSB TV AMPLIFIER ZD-100 470-860 MHz
AVX-5/UHF

Model: zD-100
Price: call

This is a peak sync UHF Power Amplifier. Completely based on LDMOS technology, it is designed
for both analog and digital applications. The unit is the state of the art in terms of easy assembly, reliability and performance. A RS232 connector is also available in the front panel to allow for a serial interface connection for remote control (modem, computer, etc. This mechanical structure has been designed for modularity, which makes servicing easier and faster. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications. This amplifier is great for multi channel's digital transmitting on same time up to 4 channels.

ZD-100More pictures

TV CHANNELS LIST
MORE INFO


LD-MOS BROADCAST 8VSB UHF POWER AMPLIFIER ZD-500W 470-862 MHz
ZD-500W

Model: ZD-500W
Price: call

ZD-500W is a full LD-MOS Broadcast Power Amplifier designed for both digital and analog applications. The unit is the state of the art in terms of easy assembly, reliability and performances. The complete unit can assure the compliance to all relevant international standards. This linear amplifier works from 470 MHz-860 MHz and it is perfect for Analog or Digital TV broadcast applications. This amplifier is great for multi channel's digital transmitting on same time up to 4 channels.



TV CHANNELS LIST
MORE INFO


PROFESSIONAL UHF LOG-PERIODIC ANTENNA 8 dB FROM 470-860 MHz, 300 W
LOG4786/200
Model: LOG-4786/200
Price: call

This directional antenna is a perfect match for TV UHF transmitters. Operating Frequency: 470-860 MHz. Maximum power 300 W, impedance 50 ohms.

MORE INFO
TV CHANNELS LIST
CONTACT





PROFESSIONAL TV UHF BROADBAND PANEL ANTENNA 11 dB gain- ALL CHANNELS
AP-806
Model: AP-806
Price: call

Panel antenna AP-806 will give you an excellent extended range and 11.0 dB gain in 470 MHz - 860 MHz band. This antenna can be used for both- transmitters in TV Band. Antenna AP-806 has an N type connector. VSWR is better than 1.2 all over the range. Please check pdf file.
Dimensions: 41 " X 18 " X 9 ".

MORE INFO
CONTACT





NEW- WORLD'S FIRST PORTABLE TV TRANSMITTER FOR ALL UHF CHANNELS 430-860 MHz
LT-860
Model: TVX-40 MIL
Price: Call

Export restricted item

This is the World's first unique High power Portable TV UHF transmitter for all UHF channels. It is an excellent transmitter easy to use it on a field. No special installation required. It comes with a Omni directional antenna AD-4786 for all UHF channels. This is a high power video transmitter 40 W with MIL specs. The transmitter was built in a special weatherproof box, it is very simple to use and doesn’t require any special tuning. The range is excellent, tested over 20 miles LOS. The signal can be picked up with any NTSC TV set. Special PAL transmitter is available on request. This transmitter is fully portable and can be supplied with car battery 12 VDC.

Size: 9.5"x 3"x8.5"



MORE INFO
CONTACT
SPECIAL PORTABLE AUDIO/VIDEO TRANSMITTER 61.25 MHz (CH3) HF
LT-860
Model: CH-3/25
Price: call

This video transmitter gives over 25 W RF power in 61.25 MHz (CH3 TV). This portable video transmitter has excellent prformances and great range (over 10 miles with a good antenna). It is fully mobile and works with 12 VDC (car battery).
Dimensions: 10.0 " X 4.0 " X 3.0 ".

MORE INFO
CONTACT
