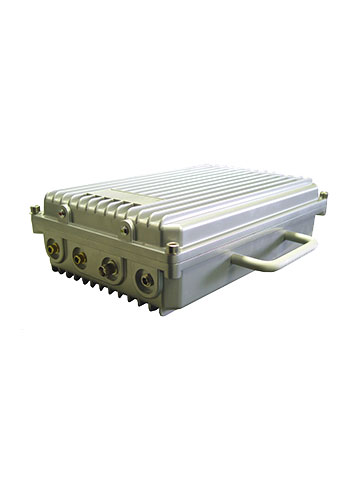

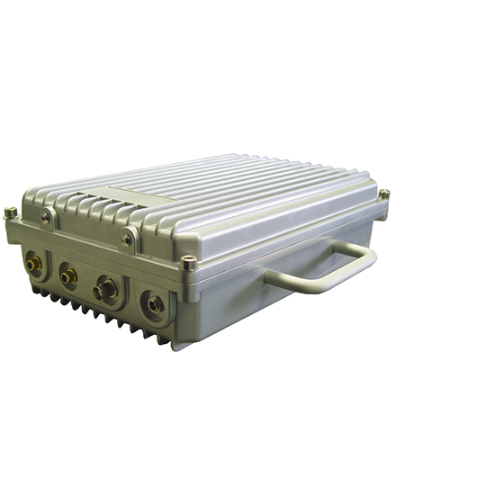

Model AMP-150PSB is a professional TV linear amplifier in AB class with 150 W RF output power and 2-4 W of input power. It is recommended as a driving amplifier for high power stages or small TV stations. This linear amplifier works from 470-860 MHz and it is perfect for Analog or Digital TV broadcast applications. Gain is 16 dB. Fully mobile this amplifier has been built in an outdoor, weatherproof box. Output connector is N female type. 26-28 VDC supply, 16 A
Dimensions :3.5" X 11.0" X 7.5".
