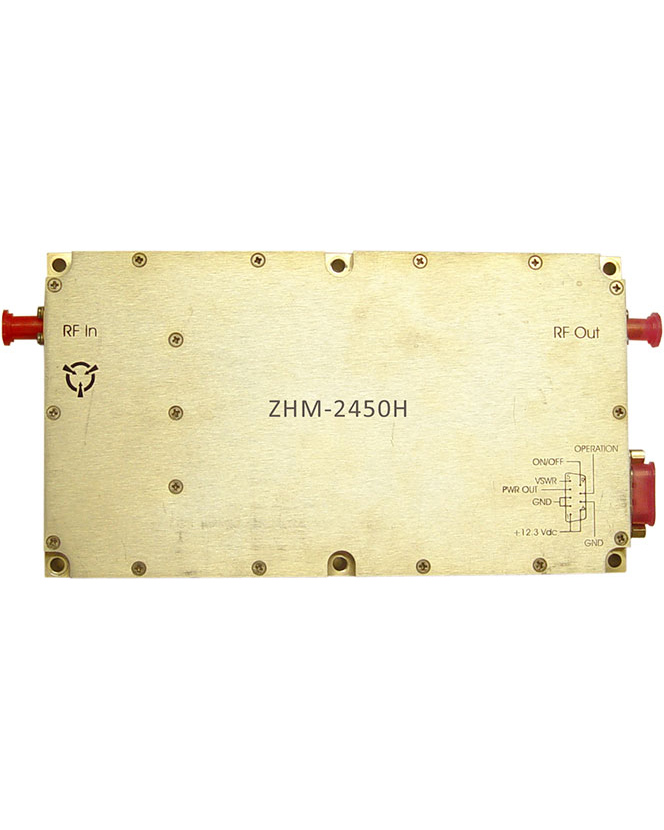

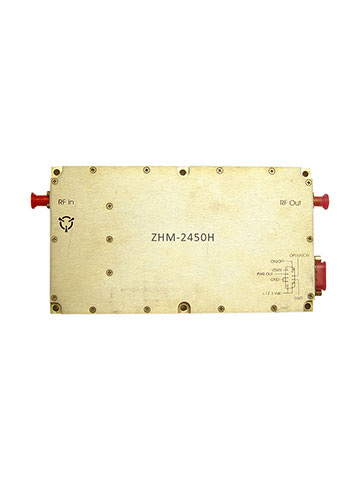

This is a medium power, super broadband RF amplifier that operates from 2350 MHz to 2450 MHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over an extremely large bandwidth with decent power added efficiency. It was designed for broad band communication systems platforms. It is packaged in a modular housing that is approximately 7.5" x 4.1" x 1.0". This amplifier has a typical saturated output power of 25-30 watts at room temperature. Noise figure at room temperature is 8 dB typical. It offers a typical gain of 33 dB with a typical gain flatness of ± 4.2 dB.
Dimensions :
PDF
