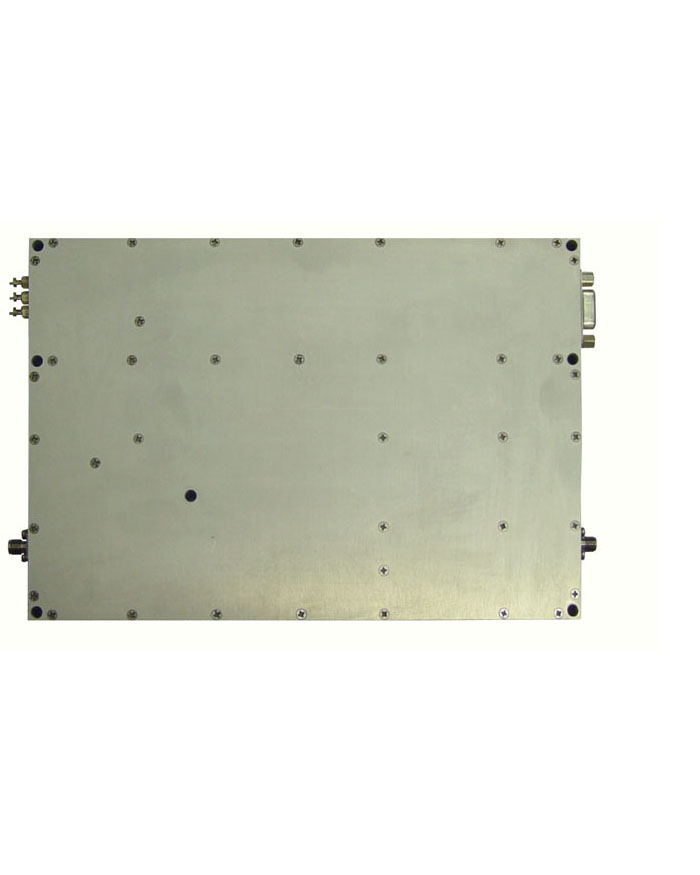

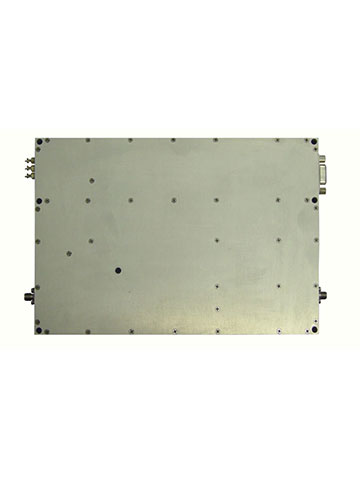

This amplifier operates from 1800 MHz to 2050 MHz, ideal for broadband military platforms as well as commercial applications because it is robust and offers high power over a multi-decade bandwidth. It was designed for broadband communication systems platforms It is packaged in a modular housing. This amplifier has a typical P3dB of 80-100 watts at room temperature. Noise figure at room temperature is 8.0 dB typical. It offers a typical gain of 52 dB with a typical gain flatness of ±3.0 dB. The power and gain flatness across the band is very flat for the bandwidth.
Dimensions : 5.75 " X 8.46 " X 1.04 ".
