RF-LINKS CIRCUIT DESIGN AND DEVELOPMENT


Final FCC tests & approvals are available.

We have over 25 years of experience in the areas of RF, microwave, and analog circuit and system design and development, as well as experience in the area of Analog and digital technology. Whether you need a new circuit or system designed, or you just need a day or two of consulting or simulation to verify your new wireless, rf, microwave, or analog design or proposal, rf-links.com is prepared to serve your organization. All our products are proudly designed and made in our factories in the USA and Canada. Many wireless, analog, and rf and microwave circuits and systems have been designed and developed over the years. Small samplings of these are shown on this page.

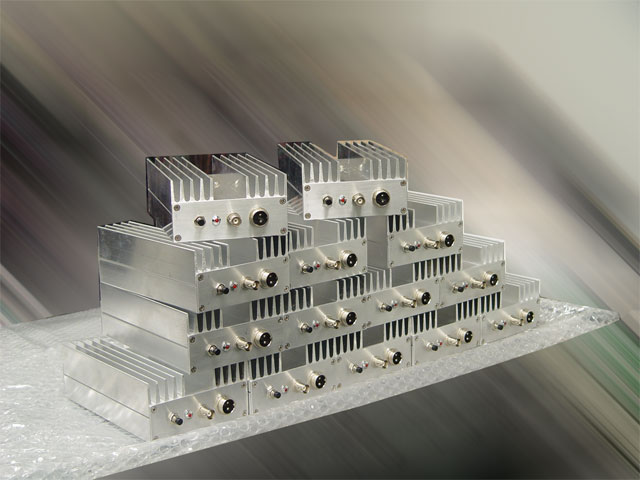

Power Amplifiers:

  • 0.01 Watt -100 Watt 25-4000 MHz
  • 10 mW - 100 Watt 903-928 MHz
  • 200 Watt DME Pulse
  • Various amplifiers for different applications and purpose
  • Linear TV amplifiers
  • Digital TV amplifiers (DVB-T, 8VSB, QAM…)

Low Power and High power Video transmitters:

  • 225-400 MHz
  • 902-928 MHz
  • 1575 MHz
  • 1830 Mhz
  • 2450 MHz
  • 5800 MHz
  • 10.7 GHz

World’s smallest audio/video transmitters:

  • 902-928 MHz
  • 1575 MHz
  • 1830 Mhz
  • 2450 MHz
  • 5800 MHz

Special Audio/Video receivers 225-6000 MHZ VCO and synthesizer:

  • Various 902-928 MHZ VCOs, TXCO’s and synthesizers
  • 400 MHz- 8000 MHZ video transmitters and synthesizers
  • Broad-band electronic warfare equipment and associated synthesizers
  • Filters
  • Modulators, TV Exciters, TV Transmitters

Systems in the DC to 18 GHz range :

  • Receivers
  • Transmitters
  • Transceivers
  • Various wireless communications equipment, including 3G wireless design, development, testing, consulting, and analysis
  • FCC Part 15 Spread Spectrum Devices
  • FCC Part 90 Analog Video Transmitters
  • FCC Part 15 Electronic Article Surveillance Systems

Antenna Design and Development :

  • Microstrip patch antennas and antenna arrays
  • Special TV transmitting antennas
  • Antennas for surveillance equipment

and more… We also provide help and services for the final FCC approval of Wireless products.

Wireless, RF, Microwave, and Analog Consulting, Design Review, and Troubleshooting

In today's world, time to market is critical, and "getting it right the first time" is crucial to your success. This is especially true in the area of wireless, RF, microwave, and analog circuit and system design and development. Proper and detailed simulation of your circuits and systems is absolutely critical; and this work should be performed before any design is committed to a circuit board. Also, with all of the potential pitfalls of a wireless, RF, microwave, or analog circuit or system design, it is crucial that your design be reviewed and analyzed by an outside expert. A day or two of consulting can often save weeks or months or troubleshooting and re-working. No matter how good your people and facilities are, it is virtually impossible for individuals or departments to properly review their own designs. It is much like trying to proofread your own writing; mistakes are often missed.

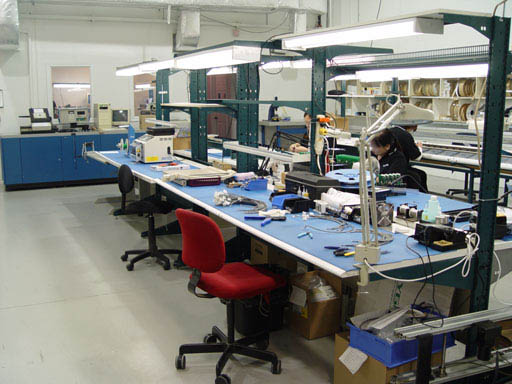

Fully Equipped Laboratory

Rf-links.com:maintains a fully equipped laboratory for supporting wireless, microwave, rf, and analog design and development for its clients. This facility is also available to help analyze and troubleshoot designs that a client may have developed or purchased from another company.

  • Test Equipment covering DC-26.5 Ghz
  • Agilent 8510C vector network analyzer system with the time domain option covering 45 MHz to 26.5 GHz
    • Device characterization
    • Antenna design and analysis
  • Spectrum Analysis using HP-8563E 30 Hz to 26.5 GHz with spurious and phase noise measurement personalities
  • 3-G and other wireless communications system design and development with the HP E-4433B ESG-D analog and digital modulation signal generator with the dual arbitrary waveform generator option.
  • Agilent 33220 arbitrary waveform generator Agilent logic analyzer
  • Tektronix TDS-744A 4 channel, 500 MHz, 2 GSPS digital oscilloscope
  • Time domain reflectometry
  • General purpose test equipment
  • Anritsu Antenna measurement range for small and large antennas
  • Extensive custom software for automatic data collection and analysis
  • Various signal sources covering DC to 26.5 GHz
  • Small milling machine for fabrication of housings, pallets, and test fixtures
  • Rf-links.com has a broad range of experience in wireless RF product design and offers a variety of wireless development engineering solutions. We have RF and baseband designers on staff, fully equipped labs, an on-site RF screen room, experience with testing and system verification, and can provide assistance with product certifications. Our team of wireless RF design engineers is well prepared to develop a solution for your wireless application.

To learn more about our Wireless Design please visit our website and contact one of our Engineers.
