WORLD'S SMALLEST COLOR VIDEO CAMERA
CM-888/S
Model: CM-888/S
Price: call

This small video camera has over 250 lines of resolution. It is the latest design and it is made for security applications or video surveillance. The lens is custom designed by the Carl Zeiss. Our incorporated AD/DA converter board gives an excellent image with a very low power consumption.
Weight: 0.5 grams .
Power supply is 2.7 V.
Dimensions: 7.75 mm X 3.75 mm

MORE INFO
CONTACT

WORLD'S SMALLEST COLOR VIDEO CAMERA
CM-588
Model: CM-588
Price: call

This small video camera has over 400 lines of resolution. It is the latest design and it is made for security applications or video surveillance. This camera is using CMOS sensor "Sharp" and the optic is custom designed by the Carl Zeiss. Our incorporated AD/DA converter board gives an excellent image with a very low power consumption.
Weight: 2.5 grams .
Power supply is 7 V-12 V. Available with RCA connector.
Dimensions: 8 mm X 8 mm X 16 mm.

MORE INFO
CONTACT

ULTRA SMALL COLOR VIDEO CAMERA
CM-588/S
Model: CM-588/S
Price: call

Smallest on the market, This small video camera has over 240 lines of resolution. It is the latest design and it is made for security applications or video surveillance. Small camera measures only 8x8x8mm.
Weight: 1.5 grams.
Power supply is 7 V -12 V.
Dimensions: 8 mm X 8 mm X 8 mm.

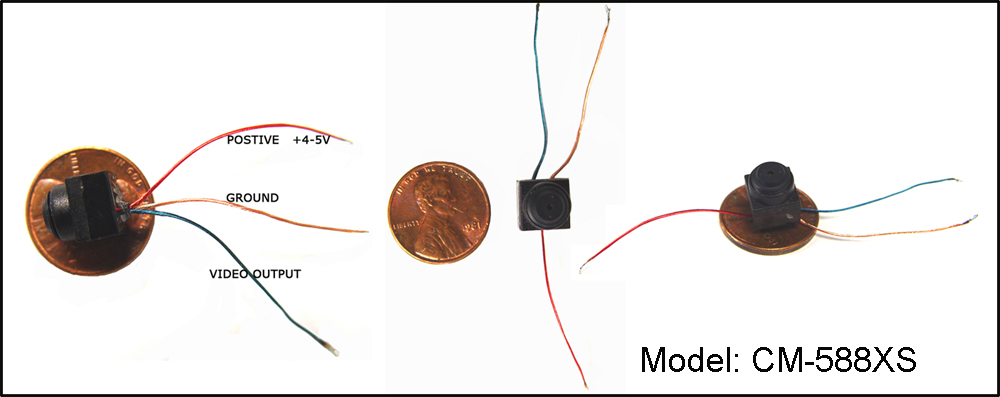

"Open wire" version CM-588XS

CM-588S
MORE INFO
CONTACT

WORLD'S SMALLEST COLOR VIDEO CAMERA
CM-888
Model: CM-888
Price: call

This small video camera has 220 lines of resolution. It is the latest design and it is made for security applications or video surveillance. Small camera measures only 9.6 X 3.2 mm.
Weight: 0.5 grams.
Power supply is 2.5 V -3 V. Current Consumption: 18-20 mA.

More pictures:

Picture 1. Picture 2. Picture 3. Picture 4.Picture 5

MORE INFO
CONTACT

SMALL HIGH RESOLUTION COLOR VIDEO CAMERA
CML-560
Model: CML-560
Price: call

This small color video camera has over 400 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 2.45 grams.
Power supply is 5 V-12 V.
Dimensions: 17.88mm X 7.77mm X 3.90 mm.

MORE INFO
CONTACT

WORLD'S SMALLEST COLOR VIDEO CAMERA
CM-888LS
Model: CM-888LS
Price: call

This small video camera has over 245 lines of resolution. It is the latest design and it is made for security applications or video surveillance. The lens is custom designed by the Carl Zeiss. Our incorporated AD/DA converter board gives an excellent image with a very low power consumption.
Weight: 0.5 grams .
Power supply is 3.3 V.
Dimensions: 8.88 mm X 3.45 mm

MORE INFO
CONTACT

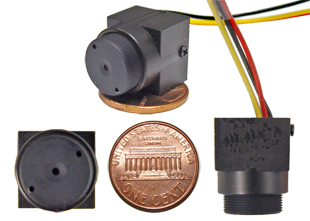

ULTRA SMALL COLOR VIDEO CAMERA
CM-524
Model: CM-524
Price: call

This small color video camera has over 380 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 5.5 grams.
Power supply is 6.8 V-12 V.
Dimensions: 18 mmX 14 mm X 14 mm.

MORE INFO
CONTACT

WORLD'S SMALLEST B&W VIDEO CAMERA
CMX-408
Model: CMX-408
Price: call

This small video camera has over 240 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 2 grams .
Power supply is 7 V-12 V.
Dimensions: 8.5 mm X 8.5 mm X 16 mm.

MORE INFO
CONTACT

SMALLEST HIGH RESOLUTION COLOR VIDEO CAMERA
CM-608
Model: CM-608
Price: call

This small video camera has over 380 lines of resolution. It is the latest design and it is made for security applications or video surveillance. Small camera measures only 12x12x16mm.
Weight: 6.5 grams .
Power supply is 7 V-12 V.
Dimensions: 12 mm X 12 mm X 16 mm .

MORE INFO
CONTACT

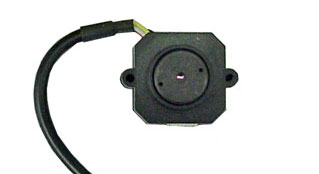

SMALLEST CMOS COLOR VIDEO CAMERA
CM-615
Model: CM-615
Price: call

This small video camera has over 380 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 6.5 grams .
Power supply is 5 V-12 V.
Dimensions: 20 mm X 20 mm X 12 mm.

MORE INFO
CONTACT

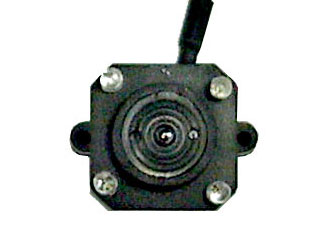

SMALLEST LOW LIGHT B&W VIDEO CAMERA
CM-616
Model: CM-616
Price: call

This small video camera has over 380 lines of resolution. This camera is excellent for low light applications thanks to four small infrared lights.
Weight: 5.5 grams .
Power supply is 5 V-12 V.
Dimensions: 20 mm X 20 mm X 12 mm.

MORE INFO
CONTACT

LOW LIGHT HIGH RESOLUTION B&W VIDEO CAMERA
CCD-816
Model: CCD-816
Price: call

This small video camera has over 420 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 23 grams .
Power supply is 5 V-12 V.
Dimensions: 32 mm X 32 mm X 18 mm.

MORE INFO
CONTACT

PANASONIC COLOR CCD SMALLEST VIDEO CAMERA
GPX-121
Model: GPX-121
Price: call

This small video camera has 400 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 5 grams .
Power supply is 5 V-12 V.
Dimensions: 28 mm X 22 mm X 14 mm.

MORE INFO
CONTACT

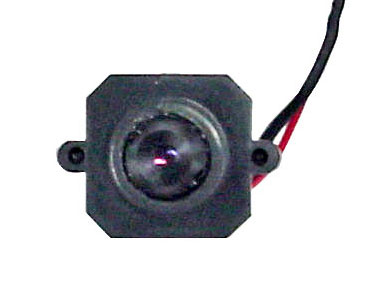

SMALLEST CMOS COLOR VIDEO CAMERA
CM-620
Model: CM-620
Price: call

This small video camera has over 380 lines of resolution. It is the latest design and it is made for security applications or video surveillance.
Weight: 6.5 grams .
Power supply is 5 V-12 V.
Dimensions: 20 mm X 20 mm X 18 mm.

MORE INFO
CONTACT

ULTRA SMALL COLOR VIDEO CAMERA
CM-666
Model: CM-666
Price: call

This small video camera has 428 lines of resolution. It is the latest design and it is made for security applications or video surveillance. Small camera measures only 7.21 X 6.09 mm X 4.00 mm.
Weight: 1.45 grams.
Power supply is 2.5 V -3.3 V.
Current Consumption: 65 mA - Max.

MORE INFO
CONTACT

ULTRA COLOR VIDEO CAMERA WITH TRANSMITTER 2.2 GHz
CMDX-23
Model: CMDX-23
Price: call

This is the ultra small newest CMOS Color Video camera with built-in video transmitter. This small combo will give you an excellent picture quality. This combo is available in 2.2 GHz band using special receiver. Complete camera with transmitter takes 28 mA / 3V from watch battery.
Dimensions: 0.35" X 0.19 " X 0.25"

MORE INFO
CONTACT

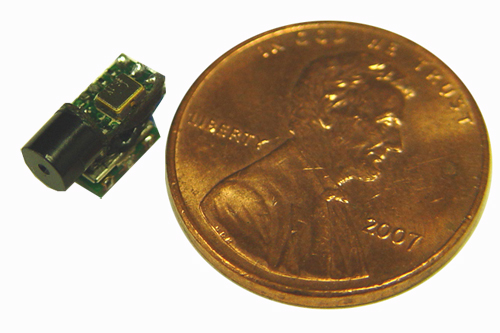

ULTRA COLOR VIDEO CAMERA WITH TRANSMITTER 1.9 GHz
CMDX-23
Model: CMDX-19
Price: call

This is the ultra small newest CMOS Color Video camera with built-in video transmitter. This small combo will give you an excellent picture quality. This combo is available in 1.9 GHz band using special receiver. Complete camera with transmitter takes 28 mA / 3V from watch battery.
Dimensions: 0.3" X 0.19 " X 0.2" or 9 mm x 4.8 mm x 5.5 mm

MORE INFO
CONTACT

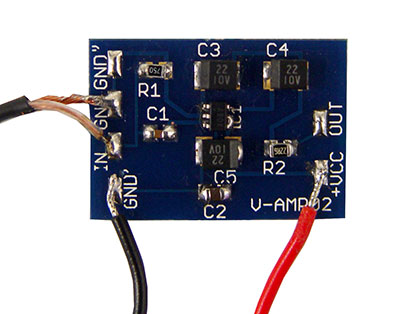

VIDEO AMPLIFIER-BUFFER
AMP-VID6
Model: AMP-VID6
Price: call

Video amp AMP-VID6 with 6dB gain and a video buffer with sync-tip clamp is all-in-one is designed to drive DC-coupled, 150 ohmsback-terminated video loads in portable video applications such as digital still cams, portable DVD players, digital camcorders, PDAs, video enabled cell phones, portable game systems, and notebook computers. The input clamp positions the videowaveform at the output and allows the AMP-VID6 to be used as a DC-coupled output driver.

MORE INFO
CONTACT

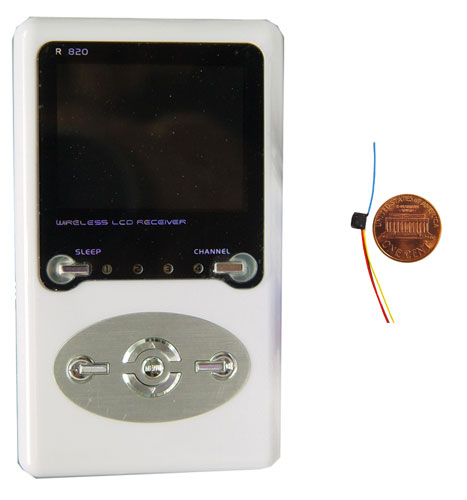

ULTRA SMALL COLOR VIDEO CAMERA WITH TRANSMITTER AND RECEIVER 2.3 GHz
CMDX-23
Transmitter
Model: DX-1
Receiver
Model: R-820
Price: call

This is the ultra small newest CMOS Color Video camera with built-in video transmitter. This small combo will give you an excellent picture quality. This combo is available in 2.3 GHz band. Complete camera system with transmitter take 28 mA / 3V from watch type of the battery.
Dimensions:
Transmitter: 3.9 mm X 2.9 mm X 1.2 mm
Receiver: 4.8 " x 2.8 " x 0.8 "

MORE INFO
CONTACT

ULTRA SMALL COLOR VIDEO CAMERA WITH TRANSMITTER AND RECEIVER- MONITOR 2.3 GHz
AMP-VID6
Transmitter
Model: DX-1
Receiver
Model: MTR-2400
Price: call

This is the ultra small newest CMOS Color Video camera with built-in video transmitter. This small combo will give you an excellent picture quality. This combo is available in 2.3 GHz band. Complete camera system with transmitter take 28 mA / 3V from watch type of the battery.
Dimensions:
Transmitter: 3.9 mm X 2.9 mm X 1.2 mm
Receiver: 4.45 " x 3.6 " x 1.2 "

MORE INFO
CONTACT

ABSOLUTELY WORLD'S SMALLEST VIDEO TRANSMITTER DX-15 1500 MHz BAND FOR SECURITY APPLICATIONS AND MEDICAL RESEARCH
LX-1900
Model: DX-15

The new 1.5 GHz video transmitter is a special design for security applications and medical research. It's world's smallest size makes it the most competitive in the market.
Dimensions: 0.25" X 0.15" X 0.25".

MORE INFO
CONTACT

ABSOLUTELY WORLD'S SMALLEST VIDEO TRANSMITTER DX-16 1600 MHz BAND FOR SECURITY APPLICATIONS AND MEDICAL RESEARCH
LX-1900
Model: DX-16

The new 1.6 GHz video transmitter is a special design for security applications and medical research. It's world's smallest size makes it the most competitive in the market.
Dimensions: 0.25" X 0.15" X 0.25".

MORE INFO
CONTACT

ULTRA COLOR VIDEO CAMERA WITH TRANSMITTER 1.5 GHz


CMDX-23
Model: CMDX-15
Price: call

This is the ultra small newest CMOS Color Video camera with built-in video transmitter. This small combo will give you an excellent picture quality. This combo is available in 1.9 GHz band using special receiver. Complete camera with transmitter takes 28 mA / 3V from watch battery.
Dimensions: 0.3" X 0.19 " X 0.2" or 9 mm x 4.8 mm x 5.5 mm

MORE INFO
CONTACT

ABSOLUTELY WORLD'S SMALLEST VIDEO TRANSMITTER DX-1C 2400 MHz BAND FOR SECURITY APPLICATIONS AND MEDICAL RESEARCH
DX-1C
Model: DX-1C

New 2.3 GHz Transmitter is the smallest video transmitter on the market, fully synthesized single channel item (2,300 MHz). The RF power output power is less than 1 mW. These transmitters are great for low range communication up to 30-100 ft LOS or experiments.
Dimensions: 0.177" X 0.098" X 0.091".

MORE INFO
CONTACT

AUDIO/VIDEO RECEIVER 2.4 GHz
CMDX-23
Model: RMX-2500C
Price: call

This is a special video receiver for 2.4 GHz. Fully synthesized this receiver has an SMA connector for different type of antennas for 2.4 GHz. The frequency step is 250 kHz with built-in fast scanning function. It covers wide range of frequencies from 2300-2500 MHz.
Dimensions: 4.6" X 3.1 " X 1.2"

MORE INFO
CONTACT

INFRARED VIDEO CAMERA WITH THERMAL IMAGING
IFC-66
Model: IFC-66
Price: call

This is a special video monitor with a thermal imaging camera, made for experiments, Mil applications and science experiments.
Dimensions: 1.85 " X 1.54 " X 0.55"

MORE INFO
CONTACT
